Asus S5 SFF S501SER 514500005WS GREY

Operating System

Windows 11 Home

Processor

Intel® Core™ i5-14500 Processor 2.6GHz (24MB Cache, up to 5.0GHz, 14 cores, 20 Threads)

Chipset

Intel® B760 Chipset

Memory

1x8GB DDR5 5600MHz U-DIMM, Memory max up to:64GB

SATA

4 x SATA 6.0Gb/s ports

Storage

512GB M.2 2280 NVMe™ PCIe® 4.0 SSD

Optical Drive (Optional)

Without optical drive

Front I/O Ports

2x USB 3.2 Gen 2 Type-A

2x USB 2.0 Type-A

1x 3.5 mm combo audio jack (Mic in or Headphone out)

1x Headphone, 1x 2 in 1 card reader SD / MMC

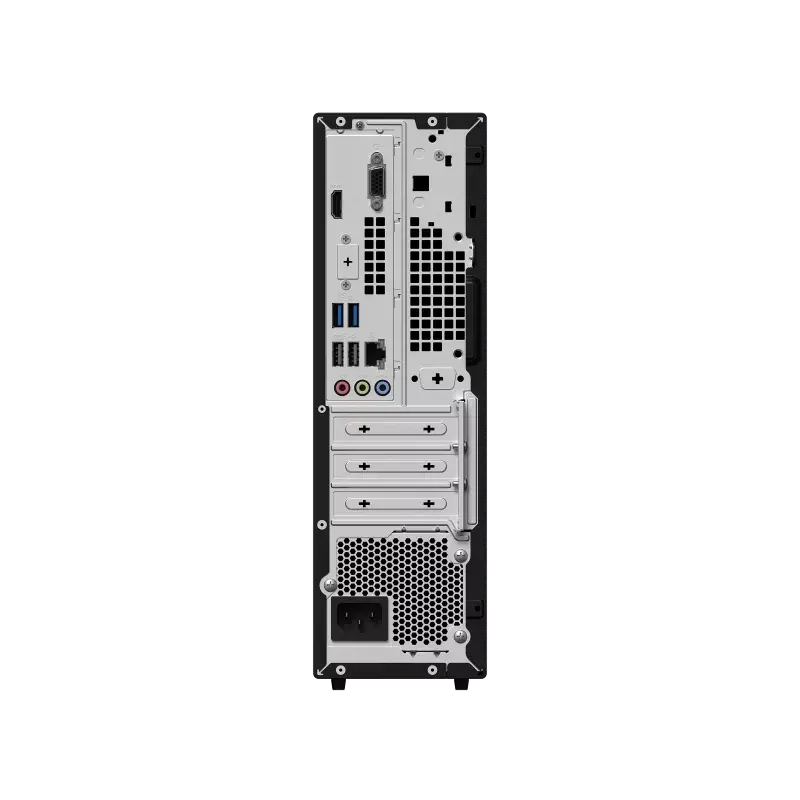

Rear I/O Ports

2x USB 3.2 Gen 1 Type-A

2x USB 2.0 Type-A

1x Padlock loop

1x Kensington lock

1x 7.1 channel audio (microphone, line-out, Line-in)

1x HDMI 1.4

1x RJ45 Gigabit Ethernet

Expansion Slots(includes used)

2x DDR5 U-DIMM slot

1x M.2 connector for WiFi

1x M.2 2280 connector for storage

1x M.2 2230 connector for storage

2x PCIe® 3.0 x 1

1x PCIe® 4.0 x 16

Audio

High Definition 7.1 Channel Audio

Network and Communication

Wi-Fi 6E(802.11ax) (Triple band) 2*2 + Bluetooth® 5.4 Wireless Card

Wi-Fi 6(802.11ax) (Dual band) 2*2 + Bluetooth® 5.4 Wireless Card

Power Supply

330W power supply (80+ Platinum, peak 660W)

180W power supply (80+ Bronze, peak 228W)

Weight

05.00 kg (11.02 lbs)

Dimensions (W x D x H)

09.30 x 29.60 x 30.90 cm (3.66" x 11.65" x 12.17")
