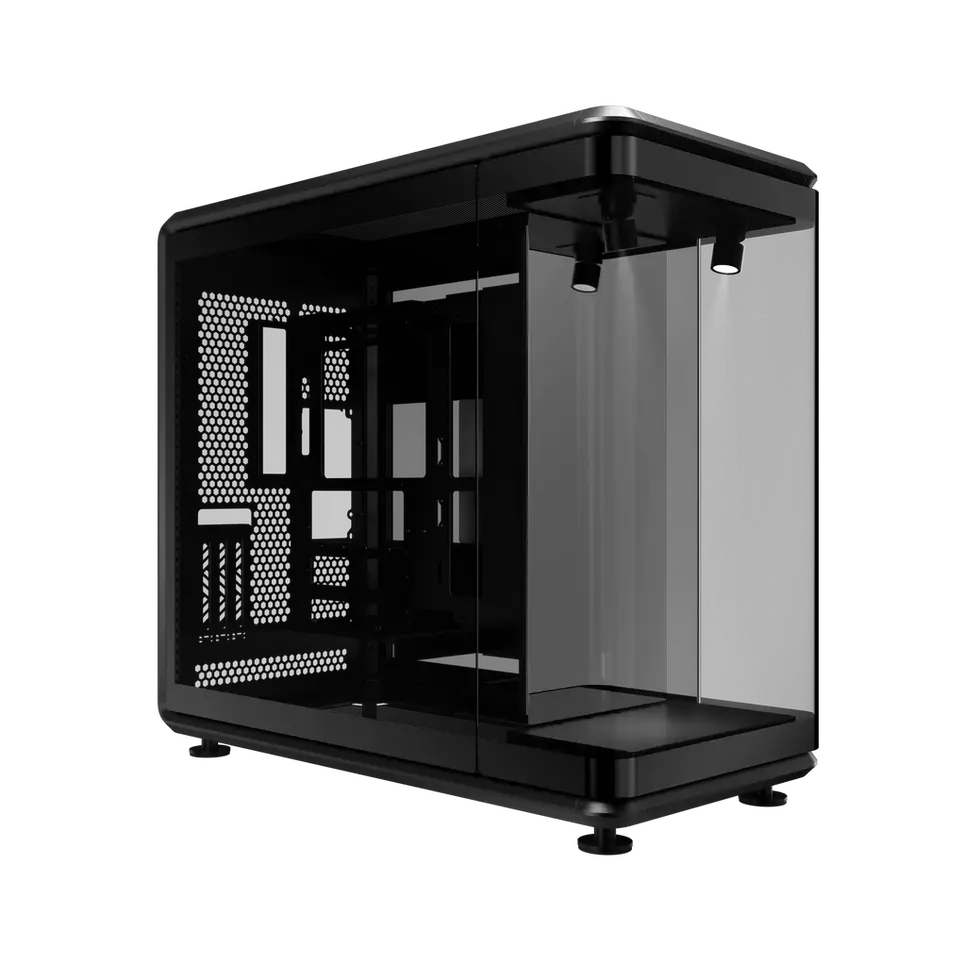

CoolerMaster Masterframe 360 Panorama ATX Case with TG

Specification - Panorama

• Series: MASTERFRAME Series
• Color: Black
• Materials - Side Panel (Left / Right): TG / TG
• Dimension (L x W x H) - Incl. Protrusions: 549 x 291 x 581 mm
• Dimension (L x W x H) - Excl. Protrusions: 511 x 291 x 581 mm
• Dimension (L x W x H) - Volume (w/o panel, protrusions and feet): 86 L
• Dimension (L x W x H) - Volume (with panel, protrusions and feet): 93 L
• Hardware support - Motherboard Support: Mini-ITX, Micro-ATX, ATX, BTF (ATX)
• Hardware support - Power Supply Support: ATX
• Hardware support - PCI Expansion Slots: 3.5
• Drive Bay Support - 5.25" Drive Bay: 0
• Drive Bay Support - 3.5" / 2.5" Drive Bay (or SSD): HDD (44.45 mm) *1 or SSD *2
• Preinstalled Drive Bay - 3.5" / 2.5" Drive Bay (or SSD): HDD (44.45 mm) *1 or SSD *2
• I/O Panel - USB Ports: 2x USB 3.2 Gen 1 Type-A 5G; 1x USB 4.0 Gen 2x2 Type-C 20G
• I/O Panel - Audio In / Out: 1x 3.5 mm Headset Jack (Audio + Mic)
• Fans Support - Top: 6x 120 mm, 2x 140 mm, 2x 180 mm, 2x 200 mm
• Fans Support - Bottom: 6x 120 mm, 2x 140 mm, 2x 180 mm, 2x 200 mm
• Radiator Support - Top: 120 / 140 / 240 / 280 / 360 mm (maximum thickness clearance 75 mm)
• Radiator Support - Bottom: 120 / 140 / 240 / 280 / 360 mm (maximum thickness clearance 75 mm)
• Dust Filters - Removable Filters: Mesh Only
• Other Electronic Components: 1x PCI-e 5.0 Riser Cable / 2x ARGB spotlight
• Maximum Dimensions for Front Collectibles Display (H x W x D): 360 x 220 x 118 mm
• DIY Tank & Pump Support: Yes (with right side tank & pump bracket)
• Toolbox: Yes
• Clearances - CPU Cooler: 145 mm
• Clearances - Power Supply: 210 mm
• Clearances - Graphics Card: 430 mm
• Cable Routing - Behind MB Tray: 110 mm
